农业农村部南京农业机械化研究所王申莹副研究员等:基于农机农艺融合的甜菜收获机偏离信息检测机构设计

Design of a deviation information detection mechanism for sugar beet harvesters based on agricultural machinery and agronomy integration

Shenying Wang^1,2, Jinbo Pan^1,2, Qiang Xiao⁴, Zhaoyan You¹, Jianmei Li⁵, Xuemei Gao^1*, Shengshi Xie^3*

(1.Nanjing Institute of Agricultural Mechanization, Ministry of Agriculture and Rural Affairs, Nanjing 210014, China;

2. College of Mechanical and Electrical Engineering, Xinjiang Agricultural University, Urumqi 830052, China;

3. College of Mechanical and Electrical Engineering, Inner Mongolia Agricultural University, Hohhot 010018, China;

4. Inner Mongolia Autonomous Region Agricultural and Animal Husbandry Technology Promotion Center, Hohhot 010000, China;

5. Agricultural and Animal Husbandry Technology Promotion Center in Linxi County, Chifeng 025250, China)

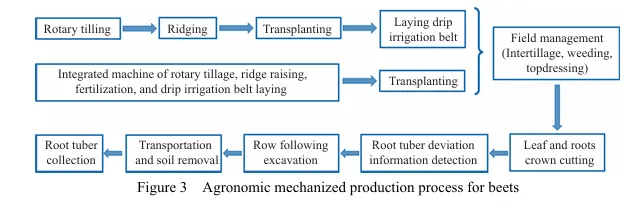

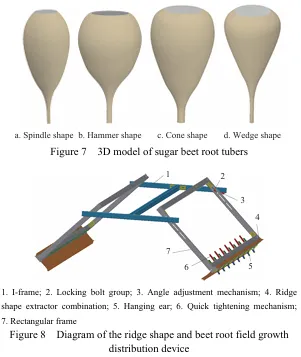

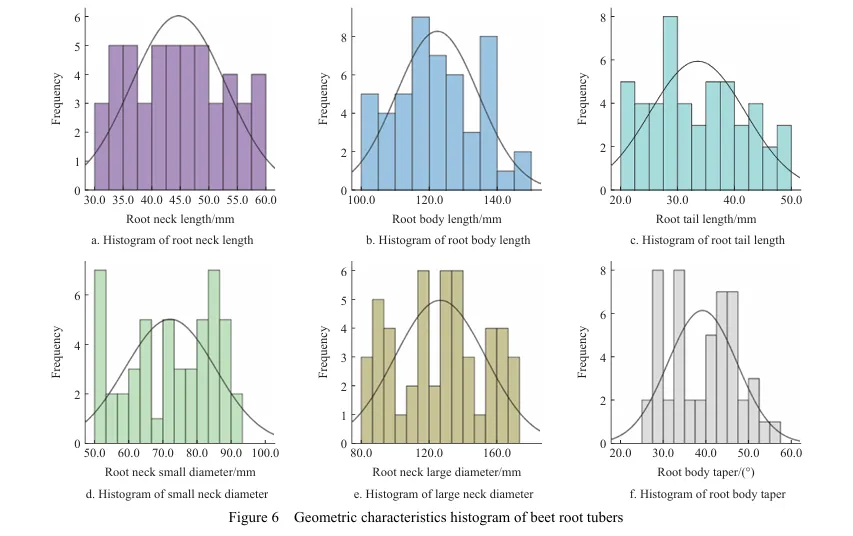

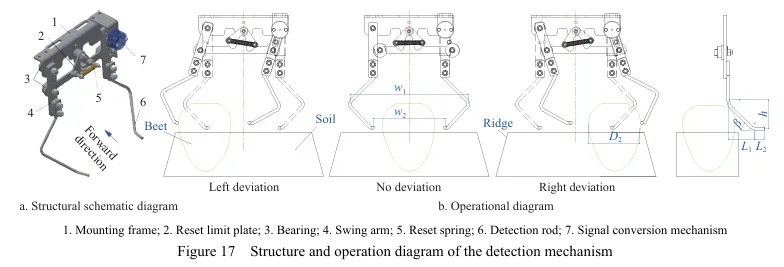

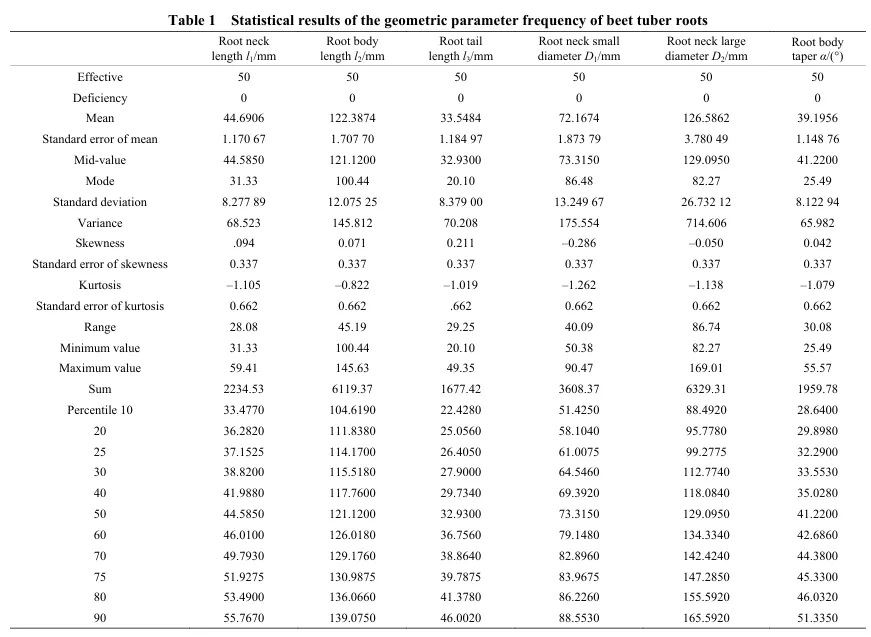

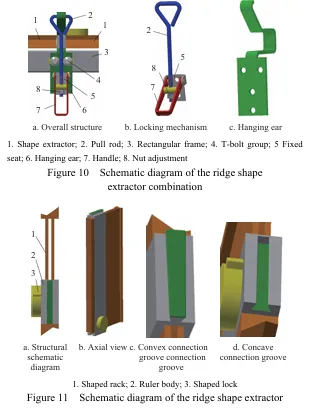

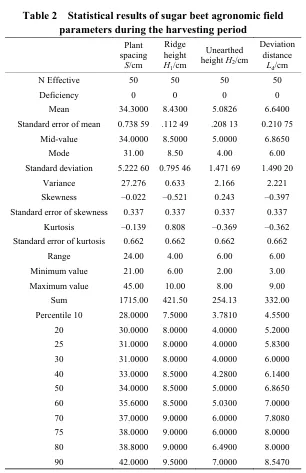

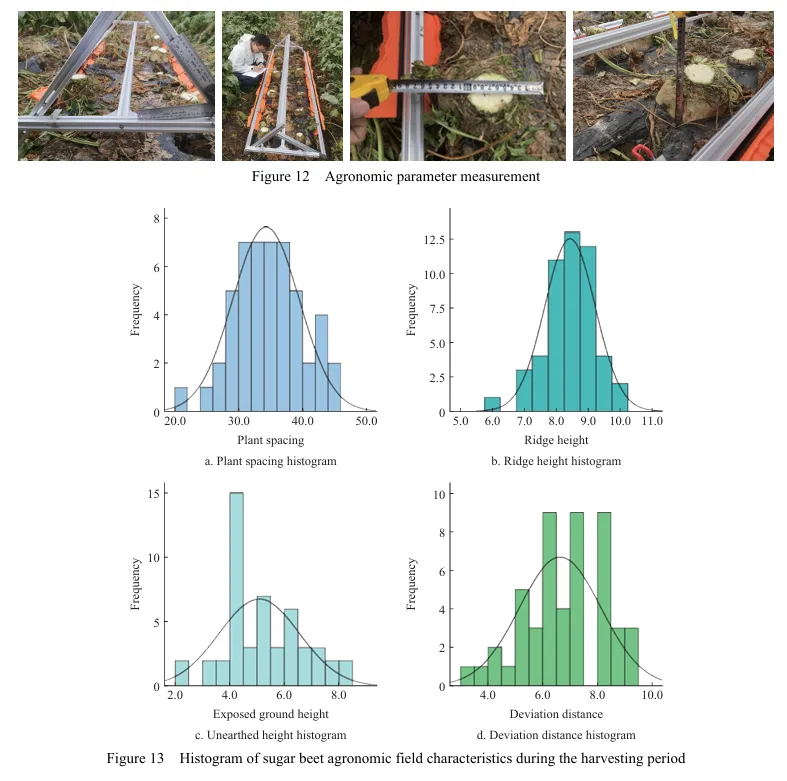

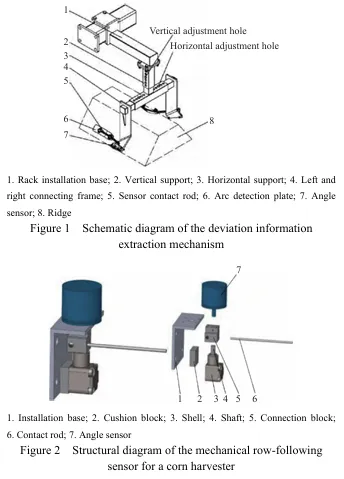

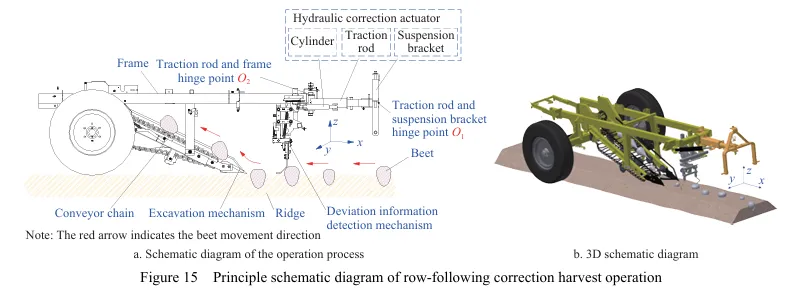

Abstract: To address large geometric shape differences, poor ridge distribution straightness, and the uncertain spatial distribution of beet roots during the harvesting period, as well as damage caused by the inaccurate row correction detection mechanisms of combine harvesters, this study conducts a design analysis and performance tests of deviation information detection mechanisms based on the integration of agricultural machinery and agronomy. The agronomic process of mechanized sugar beet production was analyzed, the geometric dimensions of root tubers under typical planting patterns of typical varieties in main sugar beet production areas were measured, and a three-dimensional geometric model of beet root tubers was established. A device for measuring ridge shape and root tuber distribution was designed, and agronomic parameters during the harvesting period, such as plant spacing, ridge height, unearthed height, and deviation distance of beet root tubers, were measured and analyzed. A spatial model of ridge shape and beet root tuber growth distribution on the ridge during harvesting was established. The overall structure of the deviation information detection mechanism was analyzed and designed, and the structural forms and key parameters of key mechanisms, such as left‒right swing detection and up‒down floating profiling, were designed on the basis of agronomic parameter analysis. Using the missed detection rate as the evaluation index, field performance tests of the deviation information detection mechanism were conducted. The results revealed that when the average forward speed of the harvester was 0.84 m/s, the average missed detection rate of the deviation information detection mechanism was 0.56%. This method has high adaptability and detection accuracy and achieves a high level of integration for agricultural machinery (detection spatial region of the detection mechanism) and agronomy (beet root distribution spatial region). This study provides a technical basis and methodological reference for improving the quality and efficiency of automatic row correction combined with harvesting operations for crops such as sugar beets.

Keywords: sugar beets, harvesting, automatic row flow, deviation information detection, agricultural machinery and agronomy integration

DOI: 10.25165/j.ijabe.20261901.10135

Citation:Wang S Y, Pan J B, Xiao Q, You Z Y, Li J M, Gao X M, et al. Design of a deviation information detection mechanism for sugar beet harvesters based on agricultural machinery and agronomy integration. Int J Agric & Biol Eng, 2026; 19(1): 120–131.
