青岛农业大学王方艳教授等:基于DEM-CFD的胡萝卜导种系统关键参数优化

Optimization of the key parameters in the carrot seed guiding system using DEM-CFD analysis

Yue Sun¹, Lianglong Zhang^1,2, Fan Yang¹, Fangyan Wang^1*, Jingtao Jiang²

(1. College of Mechanical and Electrical Engineering, Qingdao Agricultural University, Qingdao 266109, China;

2. Collaborative Innovation Center for Shandong Main Crop Production Equipment and Mechanization, Qingdao 266109, China)

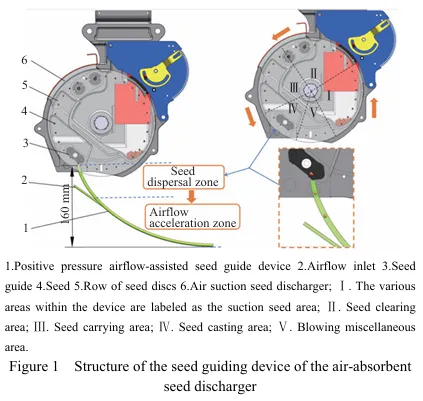

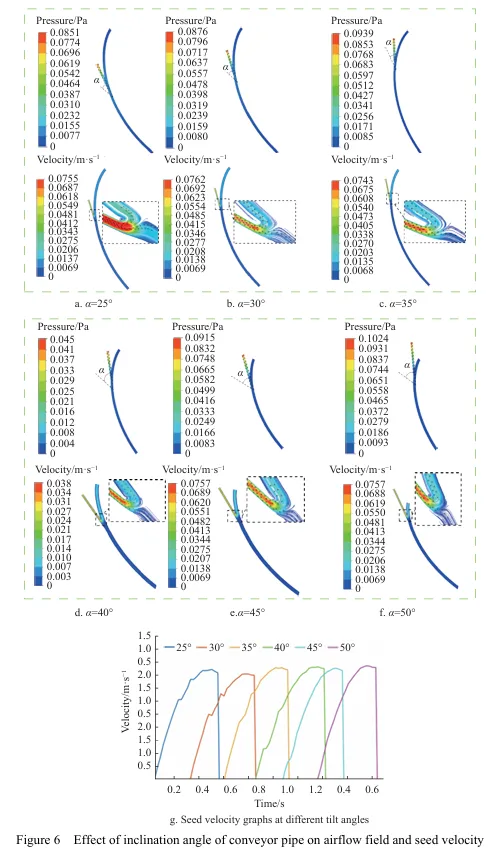

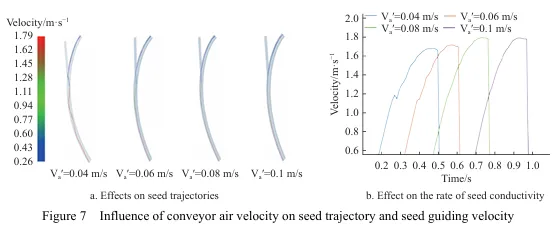

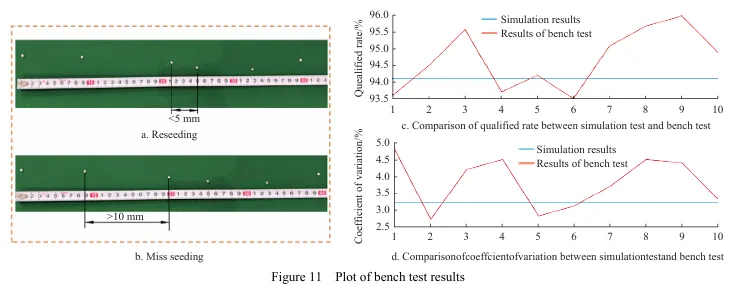

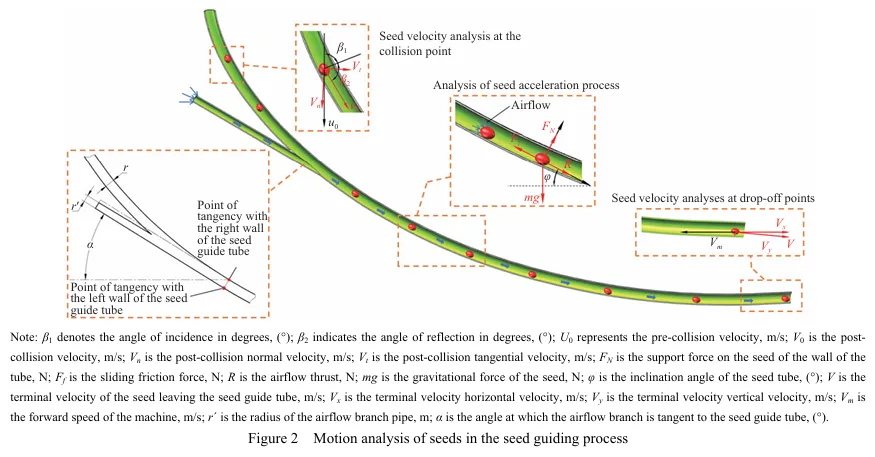

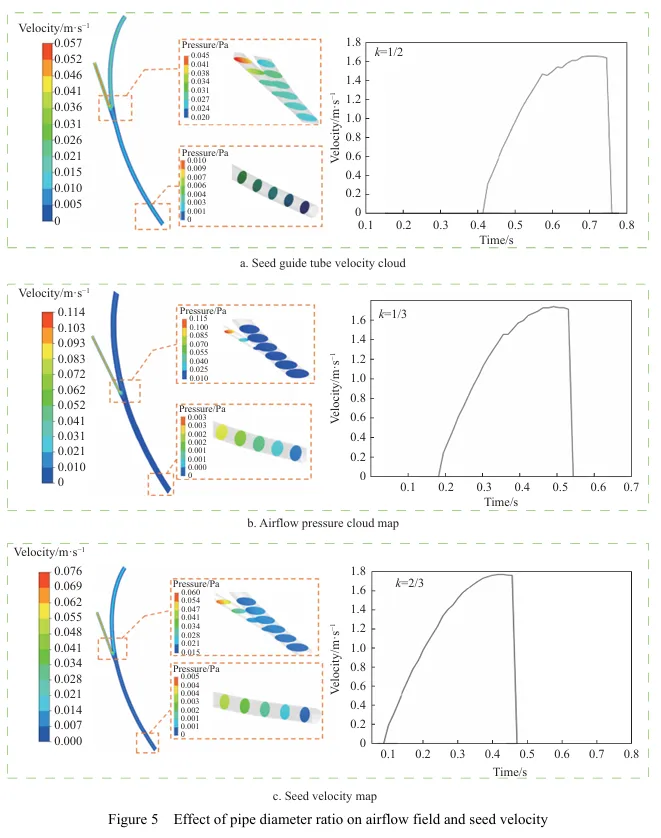

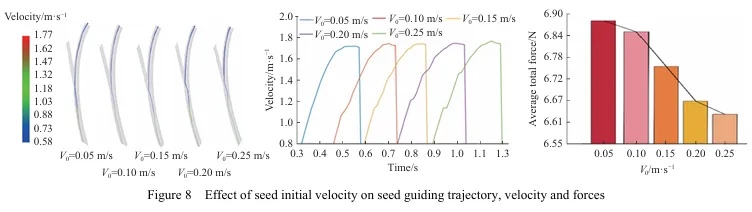

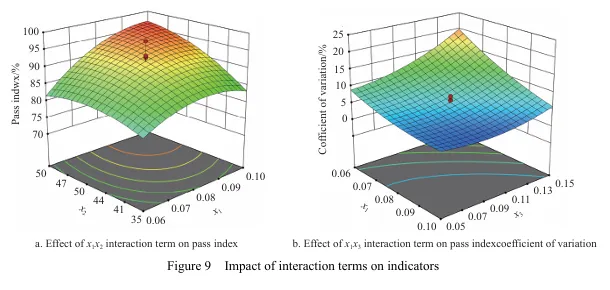

Abstract: The objective of this research was to enhance the stability and consistency of seed distribution during carrot planting. The impact of the seed guide tube’s structure on seeding quality was examined, leading to the design of a cycloidal seed guide system augmented by positive pressure airflow. By conducting kinematic modeling of the collision position of the seeds within the seed guiding system, as well as considering the seed guiding process and the seed drop position, the significant parameters influencing the final velocity of the seeds were determined. Employing a coupled Discrete Element Method-Computational Fluid Dynamics (DEM-CFD) simulation, the effects of different structural and operating parameters of the seed guide tube on the seed trajectory and airflow field were analyzed. A three-factor five-level orthogonal test was then utilized to examine the influence of each factor on each index, with the optimal conditions identified as an inlet airflow velocity of 0.077 m/s, a 45° tilt angle for the airflow branch tube, and a seed initial velocity of 0.1 m/s. Under these parameters, the qualification index was recorded as 94.1%, with a coefficient of variation of 3.2%. Bench testing conducted under the same conditions showed a decrease of 0.07% in the qualification index, and an increase of 1.875% in the coefficient of variation, with errors relative to the simulation results within acceptable bounds. These findings enhance the stability and reliability of the seed guiding system during carrot sowing operations, aligning with the demands of precision sowing.

Keywords: carrot, seed guiding process, seed motion analysis, air assisted, DEM-CFD

DOI: 10.25165/j.ijabe.20251806.9763

Citation:Sun Y, Zhang L L, Yang F, Wang F Y, Jiang J T. Optimization of the key parameters in the carrot seed guiding system using DEM-CFD analysis. Int J Agric & Biol Eng, 2025; 18(6): 112–121.
